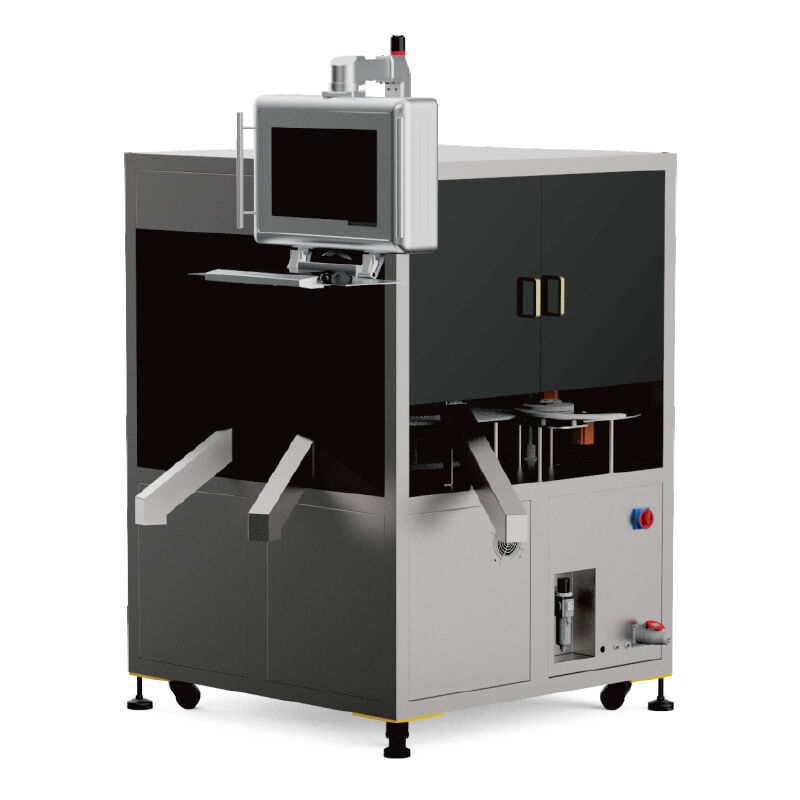

Glass Rotary Visual Inspection Machine

Name: Glass Rotary Visual Inspection Machine
Brand: Shanghai Seabird Home Co., Ltd.
SKU: VR120 Series
Availability: InStock

Product Details

Model Number: VR120 Series

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Machine Model:	VR120 Series	Product Air Pressure:	0.5-0.8 MPa
Product Dimensions:	186013602150mm	Detection Speed:	Approximately 300-700 Birds/minute
Rated Power:	2.5KW	Product Power Supply:	AC220V
Detection Accuracy::	0.01mm	Discharge Port Height:	600mm
Product Weight:	980kg	Scope Of Application:	All Products That Can Be Stably Placed On Optical Glass, Such As Rubber Stoppers, Are Acceptable.

Machine Model:	VR120 Series
Product Air Pressure:	0.5-0.8 MPa
Product Dimensions:	186013602150mm
Detection Speed:	Approximately 300-700 Birds/minute
Rated Power:	2.5KW
Product Power Supply:	AC220V
Detection Accuracy::	0.01mm
Discharge Port Height:	600mm
Product Weight:	980kg
Scope Of Application:	All Products That Can Be Stably Placed On Optical Glass, Such As Rubber Stoppers, Are Acceptable.

Glass Rotary Visual Inspection Machine

System Introduction:
The fully automatic rubber stopper inspection machine performs all-round inspection of the product from the front, back, sides, and inside. Utilizing AI optical screening, it can detect deformation, flash, cuts, corner defects, breakage, size defects, flaws, missing material, excess material, hair, surface wrinkles, poor glue dissolution, eccentricity, mixed shapes, insufficient glue, air bubbles, etc., and rejects defective products accordingly. It automatically counts qualified products and can divert them to designated collection containers.

Equipment Features:

1. 360-degree blind-spot-free precise detection; real-time data storage; real-time image display of detection results; data statistics; dynamic display of operating status;

2. Professional optical glass for more precise detection of product dimensions, height, and bottom.
3. Works with a vibratory feeder and conveyor, completing the entire process from material handling to product sorting and metering in one step.
4. Rapid modeling and product management through deep learning software algorithms; simple interface operation, easy maintenance, and convenient cleaning.

5. Complies with GMP standards.

Glass Rotary Visual Inspection Machine 0

Glass Rotary Visual Inspection Machine 1

Glass Rotary Visual Inspection Machine 2

Glass Rotary Visual Inspection Machine 3

Glass Rotary Visual Inspection Machine 4

Glass Rotary Visual Inspection Machine 5

Glass Rotary Visual Inspection Machine 6

Glass Rotary Visual Inspection Machine 7

Glass Rotary Visual Inspection Machine 8

Glass Rotary Visual Inspection Machine 9

Glass Rotary Visual Inspection Machine 10
