180 Series Conveyor Belt with Clamping Structure

Name: 180 Series Conveyor Belt with Clamping Structure
Brand: Shanghai Seabird Home Co., Ltd.
SKU: VR120 Series
Availability: InStock

Product Details

Model Number: VR120 Series

Document: Product Brochure PDF

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Highlight:

Machine Model:	VZ180	Product Air Pressure:	0.5-0.8 MPa
Product Dimensions:	186013602150mm	Detection Speed:	Approximately 220-450 Birds/minute
Rated Power:	2.5KW	Product Power Supply:	AC220V
Detection Accuracy::	0.01mm	Discharge Port Height:	700mm
Product Weight:	980kg	Scope Of Application:	Various Bottles

Machine Model:	VZ180
Product Air Pressure:	0.5-0.8 MPa
Product Dimensions:	186013602150mm
Detection Speed:	Approximately 220-450 Birds/minute
Rated Power:	2.5KW
Product Power Supply:	AC220V
Detection Accuracy::	0.01mm
Discharge Port Height:	700mm
Product Weight:	980kg
Scope Of Application:	Various Bottles

180 Series Conveyor Belt with Clamping Structure

System Introduction:

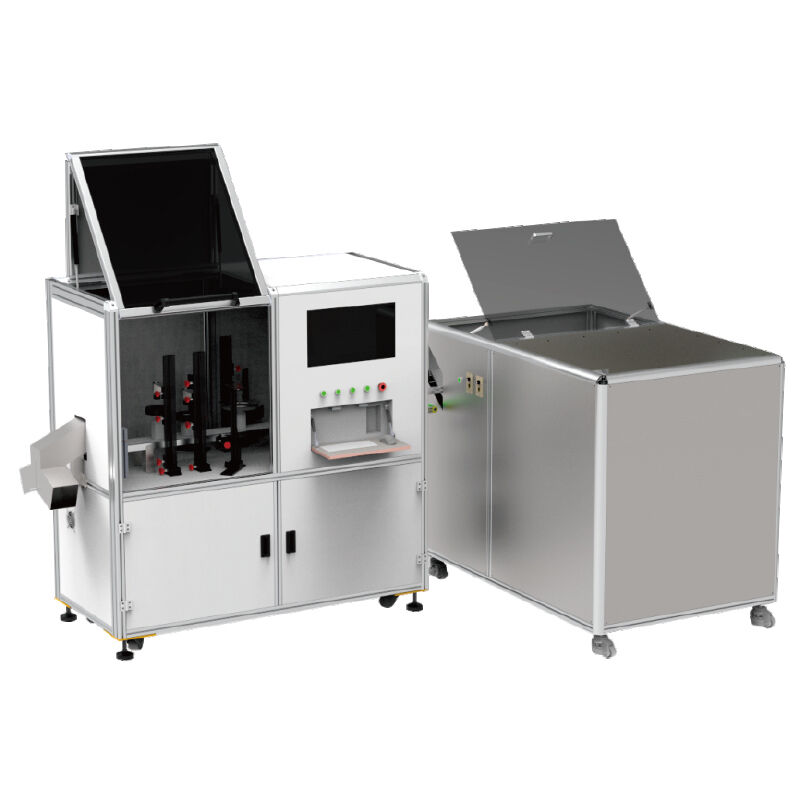

The VZ180 linear conveyor inspection machine is designed for inspecting transparent and semi-transparent plastic parts. It can detect and reject defects such as black spots, gaps, burrs, wire mesh defects, missing parts, and dimensional inconsistencies. It automatically counts qualified products and distributes them to designated collection containers. A key feature of this series of equipment is its ability to inspect products with specific lighting requirements.

Equipment Features:

1. 360-degree blind-spot-free precise detection; real-time data storage, real-time image display of results, and statistical analysis; dynamic display of operating status.
2. Professional optical glass for more precise detection of product dimensions, height, and bottom.
3. Works with a vibratory feeder and conveyor, enabling one-step processing from material handling to product sorting and measurement.
4. Rapid modeling and product management through deep learning software algorithms; user-friendly interface, easy maintenance, and convenient cleaning.
5. Complies with GMP standards.

180 Series Conveyor Belt with Clamping Structure 0

180 Series Conveyor Belt with Clamping Structure 1

180 Series Conveyor Belt with Clamping Structure 2

180 Series Conveyor Belt with Clamping Structure 3

180 Series Conveyor Belt with Clamping Structure 4

180 Series Conveyor Belt with Clamping Structure 5

180 Series Conveyor Belt with Clamping Structure 6

180 Series Conveyor Belt with Clamping Structure 7

180 Series Conveyor Belt with Clamping Structure 8

180 Series Conveyor Belt with Clamping Structure 9

180 Series Conveyor Belt with Clamping Structure 10
